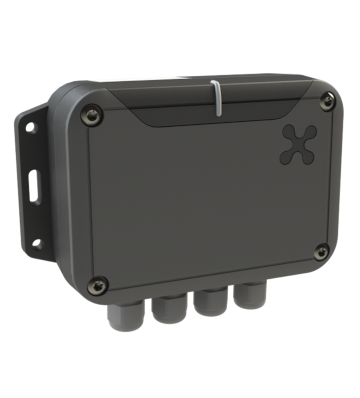

REP-Report-IO®

Remote Control & Opening Detector

In dynamic industrial environments, effective access control and remote system management are critical for ensuring safety, responsiveness, and operational continuity.

REP-Report-IO® is an innovative solution for wireless supervision and activation of systems like access doors and storage boxes.

Key Features

Maximum flexibility : Free yourself from traditional cabling constraints with unparalleled deployment flexibility.
Efficient access control : Simplify control of electric strikes for access doors and secured storage.
Smart automation : Use advanced scheduling features to automate routine operations (weekly calendar).
Two-way communication : Real-time response guarantees full control over connected systems.

Generated Data

Output relay status
Digital input status (dry contact)
Remote status reports (via LoRaWAN / CloverNet)
Timestamped event history (3,000+ logs)
KeepAlive and technical messages
Tamper or housing removal detection
Scheduled action programming (7-day calendar)

REP-Report-IO© Use Cases

Opening and gate access detection

Learn more

Remote control and command

Learn more

Occupancy rate monitoring

Learn more

Learn more about the applications

Technical Specifications

Weight : 180 g

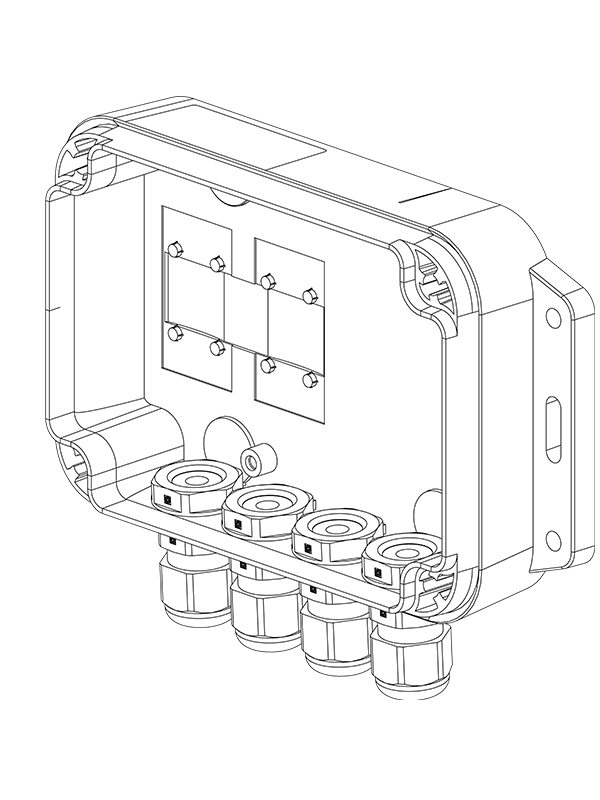

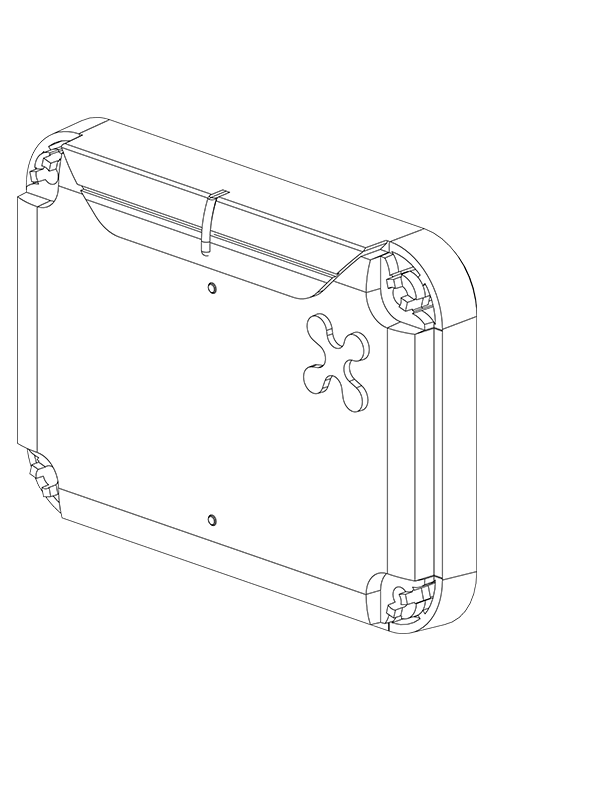

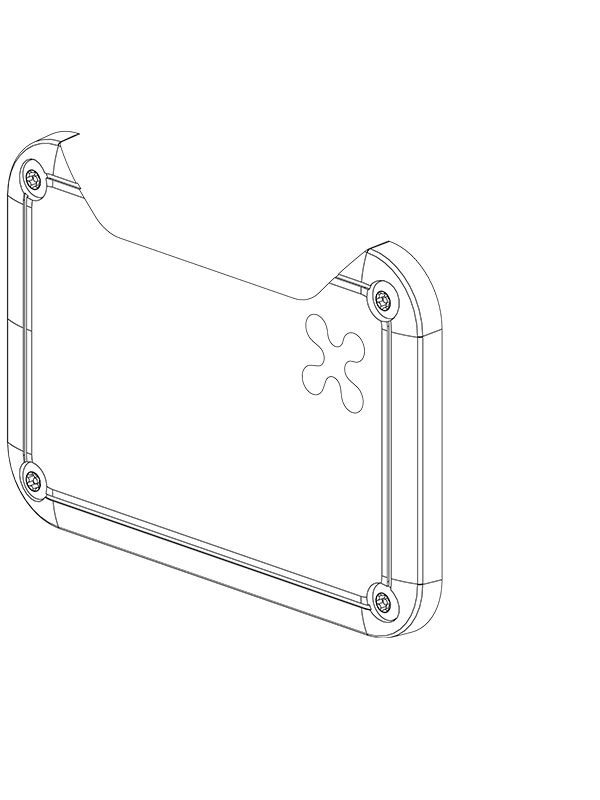

Housing : ABS – 125 × 55 × 40 mm
Ingress Protection : IP54 or IP66 (depending on version)
Operating Temp : –10°C to +50°C
Storage Temp : –40°C to +80°C
Humidity tolerance : < 95% non-condensing

Power Supply

Optional (separate references) on internal terminal block : - 24Vdc - 230Vac 50Hz

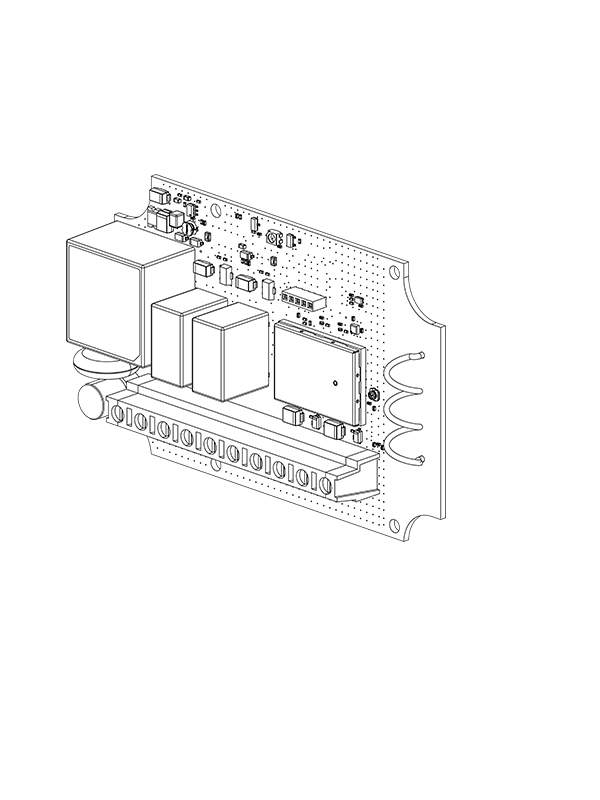

2 relay outputs with or without power redistribution (separate references),
2 dry contact inputs
